Can't find palettes in MPQ
Oct 7 2020, 8:03 am
By: Netbek

Oct 7 2020, 8:03 am Netbek Post #1

I want to replace some colors in the wireframe palette.... but I can't even find any palettes in the MPQs. What are they called? What is the path? PyPAL (SC1 Modding Suite) lets me open .pal, .jasc, and .riff, but I found no files with these extensions in any of the MPQs.

Oct 7 2020, 11:59 am Voyager7456 Post #2

Responsible for my own happiness? I can't even be responsible for my own breakfast

They are stored as *.pcx files. The wireframe palette specifically is game\twire.pcx.

all i am is a contrary canary
but i'm crazy for you
i watched you cradling a tissue box
sneezing and sniffling, you were still a fox

Modding Resources: The Necromodicon [WIP] | Mod Night
My Projects: SCFC | ARAI | Excision [WIP] | SCFC2 [BETA] | Robots vs. Humans | Leviathan Wakes [BETA]

Oct 7 2020, 7:37 pm Netbek Post #3

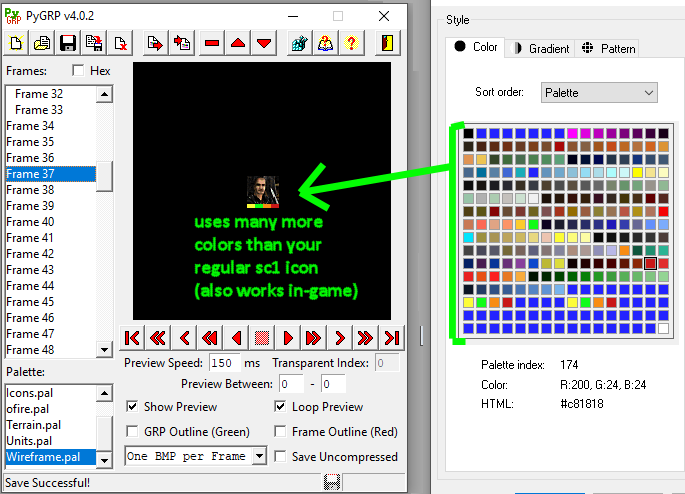

Why does the .pcx only contain these few colors wheras the actual full palette used by icons is much bigger and allows creating WarCraft-styled icons: EXAMPLE IMAGE

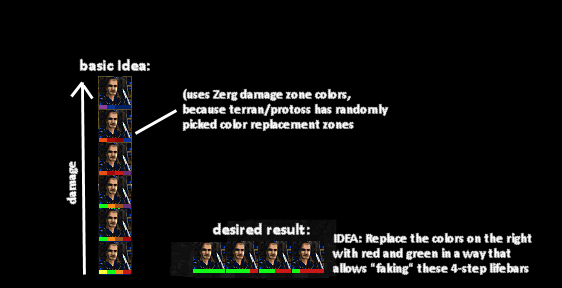

I am trying to make WC2-styled icons out of SC1 wireframes: I thought I could fake lifebars by switching out some of the damage zone colors for green and red: IMAGE ILLUSTRATING MY IDEA FOR 'FAKED' ICON LIFEBARS

Hmmm, maybe there's a better way to make lifebars? Can I manipulate which colors are replaced by which through some plugin?

EDIT: I managed to replace the colors of the zerg damage zones in a way that lets me 'fake' a healthbar: explanatory image. I also attached the explanation to this post for future searchers. In combination with what I wrote here, it should allow even beginners to make wireframe icons with healthbars :)


Post has been edited 2 time(s), last time on Oct 7 2020, 9:24 pm by Netbek.
